Application: Truck Tire, Bus Tire, Car Tire, Waste Rubber Products

Mob & Whatsapp: +86 13816951140
Email: sales@bogushanghai.com

As a professional manufacturer, We provide customized automatic tire recycling solution depending on your requirements.

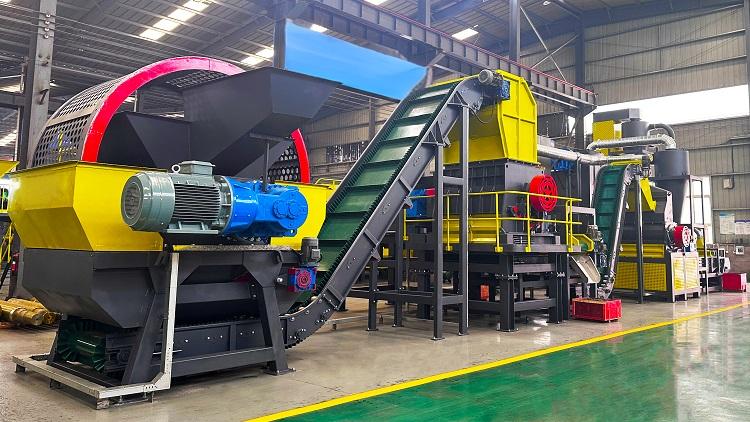

Through the whole process of intelligent automation, waste tires resource system realizes the high-value recycling of tires: the tire bead wires are precisely stripped with a tire debeader. Tires are crushed into 50-100mm by a double-shaft shredder, and then crushed into 10-20mm by a rubber rasper. The residual wire is completely separated by bipolar magnetic separations. Furthermore, the crushed rubber is processed into 1-7mm by a rubber granulator or 5-80 mesh by a grinder. There is zig-zag air separator to remove fiber impurities, and a pulse dust removal system to achieve clean production. The entire system is monitored by a PLC intelligent control center and has fault warning and linkage control functions.

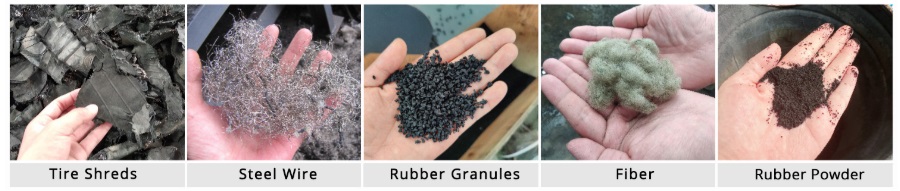

Waste tire recycling system is mainly used for crushing truck tires, car tires, bus tires, OTR tires and various rubber products like belt, seal parts, pipes into rubber granules or rubber powder with required fineness, to realize the recycling and reusing of waste tires. The finished products are used to produce reclaimed rubber, modified asphalt, rubber bricks, pyrolysis oil, sealing strips, insulating rubber materials, waterproof materials, drainage pipes, paving of roads and runways, road coverings, TDF, TDA, etc. Material Shredding Effect

1. Fully automatic solution, the entire system requires only 3 people to complete all on-site operations, high degree of automation and labor saving.
2. The production line is water-cooled and temperature-controlled, operating at room temperature to extend the service life of the equipment.
3. The production line adopts modular design, and equipment is configured according to the customer's production requirements.
4. Advanced technology makes installation, replacement, inspection and maintenance more convenient and safer.
5. We insist on testing each machine before it leaves the factory to ensure good quality and stable performance.
6. CE and ISO certification, unified standards and focus on quality.

For different tire characteristics and productivity requirements, equipment may include:
1. Tire wire drawing machine: remove tire steel wire.
2. Conveying equipment: belt conveyor, screw conveyor and air pressure transmission system.
3. Tire shredder: shreds tires into pieces (50mm-100mm).
4. Tire rasper: separates rubber and steel wire, processes them into rubber particles (10mm-20mm).
5. Magnetic separator: separates steel wire from rubber-steel mixture.
6. Rubber granulator: crushes rubber particles to smaller sizes granules (1mm-7mm).
7. Vibrating screen: sorts rubber granules of different sizes, and oversized granules are sent back for secondary crushing.
8. Fiber separator: removes fibers.
9. Secondary magnetic separator: removes fine steel wire that may remain.
10. Rubber powder making machine: grinds rubber granules into powder (5 mesh-80 mesh).
11. Fully automatic bagging system: pack the finished products into storage bags or packaging bags.
